| Place of Origin: | China |
| ब्रांड नाम: | Helm Tower |
| प्रमाणन: | ISO |
| Model Number: | HTC08 HTCE08 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| मूल्य: | Negotiable |
| Packaging Details: | Export plywood case |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100pcs per month |
| Model: | HTC08 HTCE08 | Max. Pressure: | 31.5 Mpa |
|---|---|---|---|
| Color: | Customized | Mounting Blacket: | Without |
| Width: | 430 mm | Teeth: | 28 Pieces |
| Displacement: | 780 ml/r; 857 ml/r; 934 ml/r; 1043 ml/r; 1146 ml/r; 1248 ml/r | Max. Power: | 41 Kw |
| Rated Pressure: | 25 Mpa | Max. Torque: | 5620 N.m |
| Speed Range: | 105-170 rpm | Weight: | 250KGS |
| Suitable range: | Excavator 3-6 Ton | ||
| हाई लाइट: | rotary drum cutter,drum cutter for excavator |
||

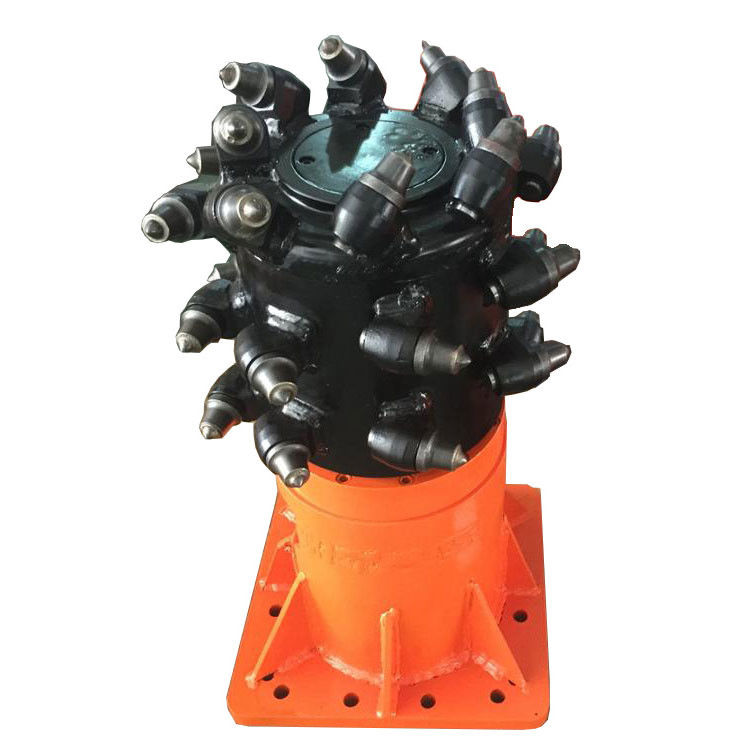

250KGS Hydraulic Drum Cutter HTC08 HTCE08 High Efficiency For Cutting Of Tunnel Profiles
Features:
Hydraulic Rotary Drum Cutter:
1) Low shake, low noise, low cost.
2) Construction safety, high efficiency, small particle milling dug directly when the backfill.
3) Flexible, according to operating environment, the replacement the different milling dig cutter, milling ditch dug round rock saws disk, etc.Replacement is simple and convenient.
4) Simple installation and maintenance of economic, efficient alternative to the bucket, hammer and other tools, great fun and a strong feeling of power to the new are under construction.
Specification data:
|
|
HTC08 | HTCE08 | |||||||
|
Code
|
6 | 8 | 9 | 0 | 1 | 2 | 0 | 1 | 2 |
|
Displacement(ml/r)
|
467 | 627 | 702 | 780 | 857 | 934 | 1043 | 1146 | 1248 |
|
Max power(KW)
|
41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 |
|
Rated pressure(Mpa)
|
25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
|
Max pressure(Mpa)
|
31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
|
Rated torqueN.m(25mpa)
|
1670 | 2240 | 2510 | 2790 | 3060 | 3340 | 730 | 4090 | 4460 |
|
Max torque N.m(31.5,pa)
|
2105 | 2820 | 3160 | 3510 | 3860 | 4210 | 4700 | 5160 | 6520 |
|
Rated speed(rpm)
|
160 | 160 | 125 | 125 | 100 | 100 | 80 | 80 | 60 |
|
Max.speed(rpm)
|
210 | 210 | 185 | 170 | 155 | 140 | 130 | 110 | 105 |
|
Teeth Number
|
28 | ||||||||
|
Weight(kg)
|
210 | ||||||||
|
Suitable range
|
suitable Excavator 2.5-6tons | ||||||||
Applications:
1) Cutting of trenches and shafts in hard ground.
2) Trimming of concrete and asphalt.
3) Trimming the surface of secant bored piles.
4) Cutting of tunnel profiles.
5) Any kind of rock excavation.
6) Removing stumps and roots of trees.
