| उत्पत्ति के प्लेस: | China |
| ब्रांड नाम: | Helm Tower |
| प्रमाणन: | ISO9001 |
| मॉडल संख्या: | MCR03/MCRE03 |
| न्यूनतम आदेश मात्रा: | 1 PCS |
|---|---|
| मूल्य: | Negotiable |
| पैकेजिंग विवरण: | Export plywood case |
| प्रसव के समय: | 5-8 working days |
| भुगतान शर्तें: | T/T, L/C |
| आपूर्ति की क्षमता: | 2000pcs per month |
| Performance: | 100% Replace to Original motor | Color: | Customized |
|---|---|---|---|
| Material: | Casting Iron | Displacement: | 400 ml/r |
| Speed: | Single speed | Warranty: | 1 Year |
| हाई लाइट: | high power hydraulic motor,hydraulic orbital motors |
||

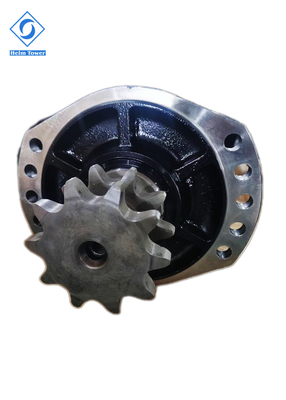

High Torque Low Speed MCR03 MCRE03 Hydraulic Motor with low noise
| Code | MCR03 | |||
| Displacement Group | 7 | 0 | 1 | 2 |
| Displacement(ml/r) | 160 | 225 | 255 | 280 |
| Theoretical torque at 10 MPa(N.m) | 254 | 357 | 405 | 445 |
| Rated speed(r/min) | 250 | 160 | 160 | 125 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 |
| Rated torque(N.m) | 530 | 740 | 830 | 920 |
| Max pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 |
| Max torque(N.m) | 650 | 910 | 1030 | 1130 |
| Speed range(r/min) | 0-670 | 0-475 | 0-420 | 0-385 |
| Max power(kW) | 18 | |||
| Code | MCRE03 | ||
| 0Displacement Group | 0 | 1 | 2 |
| Displacement(ml/r) | 325 | 365 | 400 |
| Theoretical torque at 10MPa(N.m) | 516 | 580 | 636 |
| Rated speed(r/min) | 160 | 125 | 125 |
| Rated pressure(Mpa) | 25 | 25 | 25 |
| Rated torque(N.m) | 1060 | 1200 | 1310 |
| Max pressure(Mpa) | 31.5 | 31.5 | 31.5 |
| Max torque(N.m) | 1310 | 1470 | 1620 |
| Speed range(r/min) | 0-330 | 0-295 | 0-270 |
| Max power(kW) | 22 | ||
