| उत्पत्ति के प्लेस: | Ningbo |
| ब्रांड नाम: | Helm Tower |
| प्रमाणन: | ISO 9001 |
| मॉडल संख्या: | MS05 |
| न्यूनतम आदेश मात्रा: | Negotiation |
|---|---|
| मूल्य: | Negotiable |
| पैकेजिंग विवरण: | Standard Export Wooden Case |
| प्रसव के समय: | 7-15 working days |
| भुगतान शर्तें: | L/C, T/T |
| आपूर्ति की क्षमता: | 1000 units per month |
| Type: | piston motor | Color: | customized |
|---|---|---|---|
| Speed: | 0-200 r/min | Torque: | 1405-2092 N.m |
| Rated pressure: | 25 MPa | Max. pressure: | 40 MPa |
| Material: | Steel | ||
| हाई लाइट: | radial hydraulic motor,low speed hydraulic motor |
||

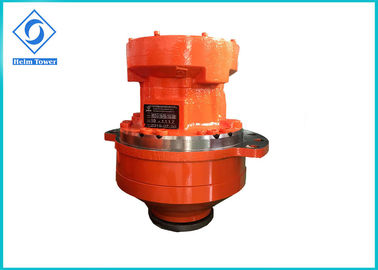

Poclain Hydraulic Motor MS05 for Johndeer 280 Skid Steer Loader
Features:
MS05 Hydraulic Piston Motor
1.Radial piston type,
2.Adopt Imported Bearing and Oil Seal, etc,
3.Modular design, High efficiency, High pressure and smooth running even at very low speeds,
4.Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
MS05 Displacement Diagram
|
Type Displacement |
MS05-8 | MS05-9 | MS05-0 | MS05-1 | MS05-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 376 | 188 | 468 | 234 | 514 | 257 | 560 | 280 | ||
| Max power(kw) | 25 | 17 | 25 | 17 | 25 | 17 | 25 | 17 | ||
|
Pressure discrepancy 10MPa Torque (N.m) |
562 | 275 | 699 | 343 | 768 | 376 | 837 | 410 | ||
| Rated torque(N.m) | 1405 | 1749 | 1921 | 2092 | ||||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | ||||||
| Max pressure(MPa) | 40 | 40 | 35 | 35 | ||||||
| Rated speed(r/min) | 90 | 90 | 85 | 80 | ||||||
| Speed range(r/min) | 0-200 | 0-200 | 0-190 | 0-180 | ||||||
Application:
Engineering Machinery: Cinder,Skid steer loader, Explosion- proof Forklift,Forklift,Beam Carrier/Hoisting Machine;Farming Machinery: Mini Farming Vehicle, Combine Harvesters and Cotton Pickers;Mining Machinery: Scraper, Road Header, Heavy Duty Handling Car, Coal Mine Drill;Special Vehicles: Fire Engine.
MS05 Connection Dimension
High precision testing facilities and experienced inspectors.
FAQ:
Q:Are you trading company or manufacturer?
A: A manufacturer with 15 years experience in producing motors.
Q:Which payment terms do you accept?
A:T/T L/C.
Q:What's the warranty of your products?
A:One year from the delivery date.
Q:Can we buy 1 piece for quality testing?
A:Yes, no problem.
