| ब्रांड नाम: | Helm Tower |
| प्रमाणन: | IS09001 |
| मॉडल संख्या: | MS50 |
| न्यूनतम आदेश मात्रा: | 1 set |
|---|---|
| पैकेजिंग विवरण: | Wooden case |
| प्रसव के समय: | 15 workdays |
| भुगतान शर्तें: | T/T, L/C |
| आपूर्ति की क्षमता: | 100sets per month |
| उत्पत्ति के प्लेस: | Ningbo,China | Rated pressure: | 25Mpa |
|---|---|---|---|
| Max pressure: | 31.5Mpa | Warranty: | 12month |
| Certificate: | ISO9001 | Colour: | Customer's Request |
| Condition: | New | Product name: | Poclian MS MSE motor |
| Type: | Hydraulic Motors | ||
| हाई लाइट: | 25Mpa Poclain Hydraulic Motor,Low Noise Poclain Hydraulic Motor,Forestry Machine Poclain Hydraulic Motor |
||

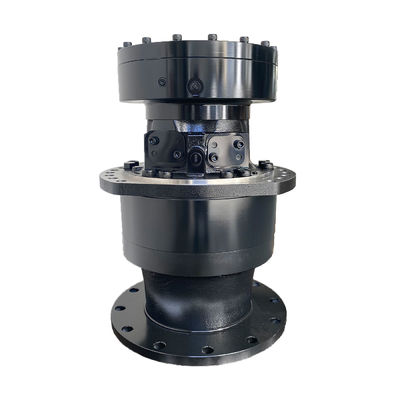

Helm Tower MS50 Hydraulic Motor With Brake Replace Poclain
Poclain MS50 Hydraulic Motor Description ( Features )
-- High performance rotary group with well-proven spherical control area offering the following advantages, self-centering.
-- Low periph-eral speed
-- High efficient.
-- Long service life robust rolling bearing.
-- Drive shaft will support radial loads.
-- Low noise level.
-- High duty roller bearing for intermettent high pressure operation.
-- For continuous duty hydrostatic are availabe.
-- Excellent starting characteristics.
-- High power density
-- Optional mounting position
| Displacement Group | 7 | 8 | 0 | 2 |
| Displacement(ml/r) | 3500 | 4008 | 4997 | 6011 |
| Theoretical torque a 10Mpa(N.m) | 5565 | 6373 | 7945 | 9557 |
| Rated speed(r/min) | 80 | 80 | 63 | 50 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 |
| Rate torque(N.m) | 11500 | 13150 | 16400 | 19750 |
| Max pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 |
| Max torque(N.m) | 14150 | 16250 | 20250 | 24350 |
| Speed range(r/min) | 0-148 | 0-138 | 0-111 | 0-92 |
| Max power(kW) | standard displacement is 140kw,variable displacement priority rotation 93kw,no priority is 70kw. | |||
Our motor advantages:
1).High performance:our motor performance is very close to Poclain original motors, even sometimes be superior to original motor.
2).100% interchangeable:both complete motor and spare parts, our products could completely replace to Poclain original motors.
3).Reasonable price:our price system has been settled much lower than Poclain original motors.
4).Fast delivery time:most of the spare parts we have inventory, the delivery time keeps within 10 days for regular motor.
5).Excellent aftersales service:we have 12 months' quality warranty, and within warranty time ,all repairment are free of charge.
Application:
Our MS MSE series hydraulic motor are widely applied to agriculture machine, construction machine, coal mine machine, marine equipment, forestry machine etc.
For instance:
- BELL 220A Telelogger
- HAMM 4011 Road Roller
- BOMAG 211 Soil compactor
- BOMAG 130 AD Road Roller
- BOMAG Roller BW213 D2
- Carterpillar 226B
