| उत्पत्ति के प्लेस: | Ningbo |
| ब्रांड नाम: | Helm Tower |
| प्रमाणन: | ISO 9001 |
| मॉडल संख्या: | MS25 |
| न्यूनतम आदेश मात्रा: | 1 pc |
|---|---|
| मूल्य: | Negotiable |
| पैकेजिंग विवरण: | Standard Export Wooden Case |
| प्रसव के समय: | 7-15 working days |
| भुगतान शर्तें: | L/C, T/T |
| आपूर्ति की क्षमता: | 1000 units per month |
| Type: | piston motor | Color: | customized |
|---|---|---|---|
| Rated pressure: | 25MPa | Max pressure: | 40MPa |
| Warranty: | 1 year | Material: | Cast Iron |
| Application: | machinery of hydraulic | ||
| हाई लाइट: | 25MPa Hydraulic Radial Piston Motor,Cast Iron Hydraulic Radial Piston Motor |
||

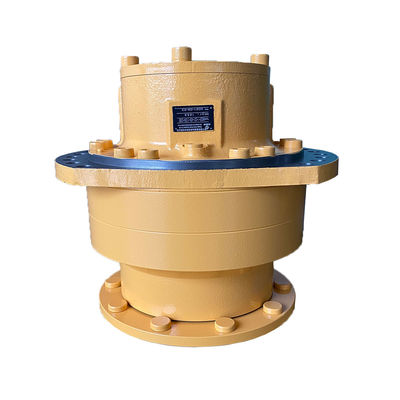

Helm Tower Ms25-1-D21-A25-1120A Drive Hydraulic Radial Piston Motor
Poclain MS25 Slow Speed Hydraulic Motors Compact Volume And Easy Installation
Features:
This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
MS25 series Displacement Diagram:
|
Code
|
MS25
|
|||
|
Displacement Group
|
8
|
0
|
1
|
2
|
|
Displacement(ml/r)
|
2004
|
2498
|
2752
|
3006
|
|
Theoretical torque at 10 MPa(N.m)
|
3186
|
3972
|
4376
|
4780
|
|
Rated speed(r/min)
|
100
|
80
|
63
|
63
|
|
Rated pressure(Mpa)
|
25
|
25
|
25
|
25
|
|
Rated torque(N.m)
|
6550
|
8200
|
9000
|
9850
|
|
Max pressure(Mpa)
|
31.5
|
31.5
|
31.5
|
31.5
|
|
Max torque(N.m)
|
8100
|
10100
|
11150
|
12150
|
|
Speed range(r/min)
|
0-145
|
0-137
|
0-125
|
0-115
|
|
Max power(kW)
|
90
|
|||
MS25 Applications:
Engineering Machinery: horizontal directional drill (HDD),jumbolter,10T road roller(MK series ),Cement Concrete Mixing Machine,forging manipulators.
Marine Machinery: windlass,crane.
Mining Machinery: road header,heavy duty handling car,coal mine drill.
High precision testing facilities and experienced inspectors.
If you have another question, pls feel free to contact us as below:
Zoe Zhu Whatsapp/Phone +86 13906844199
व्यक्ति से संपर्क करें: Mr. Helm Tower
दूरभाष: 13567431300
फैक्स: 86-574-86369630
