| उत्पत्ति के प्लेस: | CHINA |
| ब्रांड नाम: | Helm Tower Hydraulic |
| प्रमाणन: | ISO9001 |
| मॉडल संख्या: | MS11 |
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| पैकेजिंग विवरण: | wooden case |
| प्रसव के समय: | 7-15 days |
| भुगतान शर्तें: | L/C, T/T |
| आपूर्ति की क्षमता: | 1000 sets per month |
| Warranty: | 1 year | Color: | Follow customer's requirement |
|---|---|---|---|
| Application: | Construction/Agriculture/Mining/Marine Machinery | Pressure: | 25 Mpa |
| Delivery time: | 7-15 days | Package: | Wooden case |
| हाई लाइट: | Poclain Replace Hydraulic Drive Motor,25 Mpa Hydraulic Drive Motor,Modular Hydraulic Drive Motor |
||

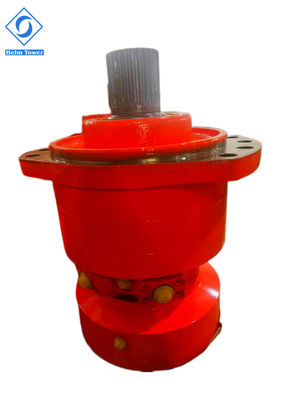

Replace Poclain Hydraulic Drive Motor MS11 For Agriculture Machinery
Product Features:
MS11 Hydraulic Motor for Sales:
1). Radial piston type.
2). Adopt Imported Bearing and Oil Seal, etc.
3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
Applications:
Construction Machinery: Beam Carrier/Hoisting Machine, Cement Concrete Mixing Station, Cinder, Belt Conveyor.
Farming Machinery: Spray Machine.
Mining Machinery: Mini Road Header, Scraper, Heavy Duty Handling Car, Coal Mine Drill.
Marine Machinery: Marine Deck Crane.
| Type | MS11-8 | MS11-9 | MS11-0 | MS11-1 | MS11-2 | |||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 837 | 418 | 943 | 471 | 1048 | 524 | 1147 | 573 | 1259 | 629 | |
| Max power(kw) | 44 | 29 | 44 | 29 | 44 | 29 | 44 | 29 | 44 | 29 |
| Pressure discrepancy 10MPa Torque (N. m) |
1251 | 613 | 1409 | 391 | 1566 | 768 | 1714 | 840 | 1882 | 922 |
| Rated torque(N. m) | 3127 | 3524 | 3916 | 4286 | 4704 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 65 | 65 | 65 | 60 | 60 | |||||
| Speed range(r/min) | 0-160 | 0-160 | 0-160 | 0-150 | 0-150 | |||||
