| उत्पत्ति के प्लेस: | Ningbo |
| ब्रांड नाम: | Helm Tower |
| प्रमाणन: | ISO 9001 |
| मॉडल संख्या: | MS18 MSE18 |
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| मूल्य: | Negotiable |
| पैकेजिंग विवरण: | Standard Export Wooden Case |
| प्रसव के समय: | 7 working days |
| भुगतान शर्तें: | L/C, T/T |
| आपूर्ति की क्षमता: | 1000 units per month |
| Type: | Low Speed High Torque Hydraulic Motor | Color: | Customized |
|---|---|---|---|
| Rated Speed: | 50-100 r/min | Max.Torque: | 4420-11400 N.m |
| Rated pressure: | 25 MPa | Max.power: | 70kW |
| हाई लाइट: | Poclain High Torque Hydraulic Motor,Low Speed Hydraulic Motor Torque MSE18,MSE18 Hydraulic High Torque Motor |
||

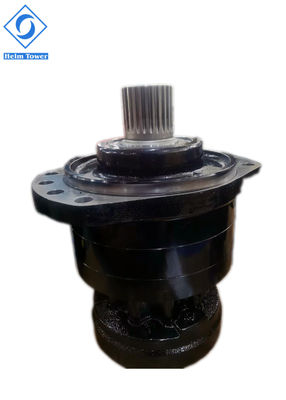

MS Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
| Type | MS18-8 | MS18-9 | MS18-0 | MS18-1 | MS18-2 | |||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 1395 | 697 | 1571 | 785 | 1747 | 873 | 1911 | 955 | 2099 | 1049 | |
| Max power(kw) | 62 | 42 | 62 | 42 | 62 | 42 | 62 | 42 | 62 | 42 |
|
Pressure discrepancy 10MPa Torque (N. m) |
2085 | 1022 | 2348 | 1151 | 2611 | 1279 | 2856 | 1400 | 3137 | 1537 |
| Rated torque(N. m) | 5212 | 5870 | 6528 | 7140 | 7843 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 55 | 55 | 55 | 55 | 50 | |||||
| Speed range(r/min) | 0-150 | 0-150 | 0-150 | 0-135 | 0-125 | |||||
Applications:
Construction: road building and maintenance, earth moving, finishing, drilling, trenching, recycling, mining and boring machines.
Agriculture: combine and others specialty harvesters, sprayers, forestry equipment,
Handling: forklift trucks, aerial work platforms, conveyors, aircraft loading equipment,
Industry: process, paper, foundry, food.
Marines: fishing, harbor,
Transportation: material, heavy duty, on-highway.
Our Workshop:
Quality Control:
