| Place of Origin: | CHINA |
| ब्रांड नाम: | Helm Tower |
| प्रमाणन: | ISO9001 |
| Model Number: | MS02 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per month |
| Certificate: | ISO9001:2008 | Warranty: | 1 Year |
|---|---|---|---|
| Type: | Hydraulic Drive Motor | Color: | Customized |
| Application: | Construction Machinery | Rated Pressure: | 25 Mpa |
| प्रमुखता देना: | Poclain MS02 Radial Piston Hydraulic Motor,Construction Machinery Poclain Drive Motor,25 Mpa Hydraulic Drive Piston Motor |
||

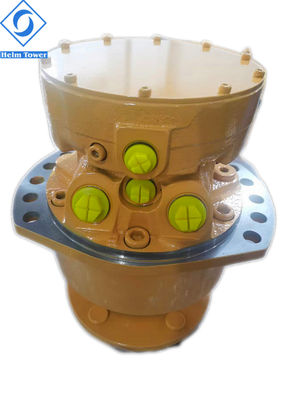

Hot Sale Poclain MS02-2-123-F03-1120 Hydraulic Drive Motor For Construction Machinery
Modular design, High efficiency, High pressure and smooth running even at very low speeds,
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control,
Application: As revolution mechanism of hydraulic system, used for forklift, skid steer loader, grab, metallurgy mine equipment, shipping port equipment, hydraulic winch, etc.
HMS MOTOR APPLIATION
Our MS MSE series hydraulic motor are widely applied to agriculture machine, construction machine, coal mine machine, marine equipment, forestry machine etc.
Construction: road building and maintenance, earth moving, finishing, drilling, trenching, recycling, mining and boring machines.
Minging: mini road header, scraper, heavy duty handling car coal mine drill.
Agriculture: combine and others specialty harvesters, sprayers, forestry equipment,
Handling: forklift trucks, aerial work platforms, conveyors, aircraft loading equipment,
Industry: process, paper, foundry, food.
Marines: fishing, harbor,
Transportation: material, heavy duty, on-highway.
For instance:
- BELL 220A Telelogger
- HAMM 4011 Road Roller
- BOMAG 211 Soil compactor
- BOMAG 130 AD Road Roller
- BOMAG Roller BW213 D2
- Carterpillar 226B,
- Carterpillar CS-563 compactor
- John Deere 280 skid steer,
- BOBCAT T190 skid steer and excavators
- VERMEER Horizontal Directional Drill
- SANDVIK Machine
- Gehl 6635 Skid steer
- Greenbeans and pea Harvesting Machine(PMC-979-AT
|
Type Displacement |
MS02-8 | MS02-9 | MS02-0 | MS02-1 | MS02-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 172 | 86 | 213 | 106 | 235 | 118 | 255 | 128 | ||
| Max power(kw) | 16 | 10 | 16 | 10 | 16 | 10 | 16 | 10 | ||
|
Pressure discrepancy 10MPa Torque (N.m) |
273 | 136 | 340 | 170 | 351 | 175 | 405 | 202 | ||
| Rated torque(N.m) | 643 | 796 | 878 | 953 | ||||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | ||||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | ||||||
| Rated speed(r/min) | 140 | 140 | 140 | 120 | ||||||
| Speed range(r/min) | 0-310 | 0-310 | 0-310 |
0-260 |
||||||
