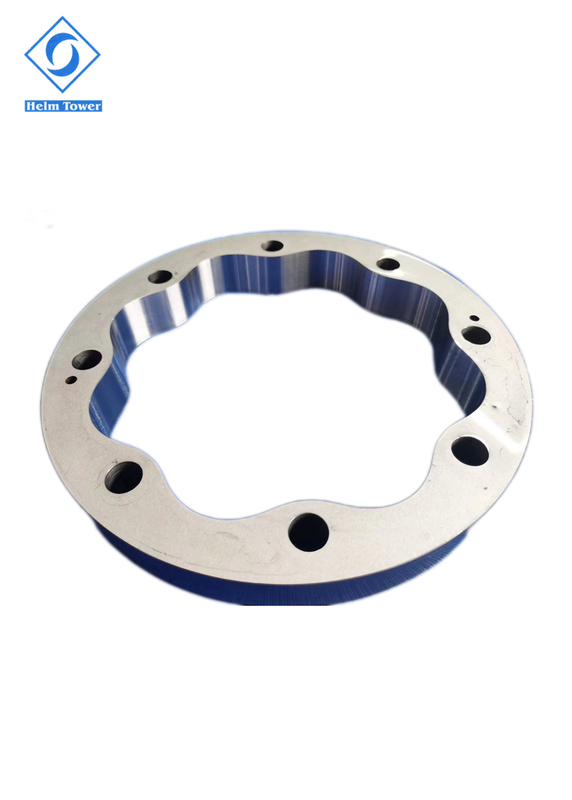

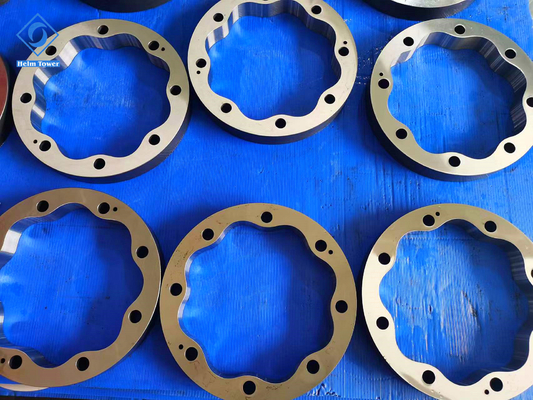

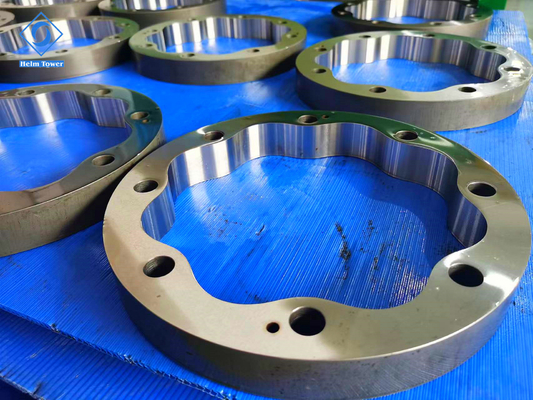

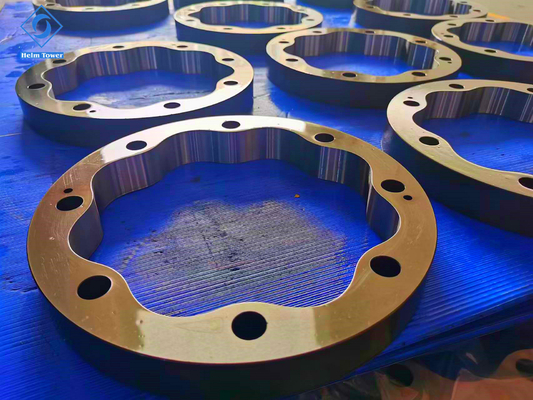

100% Applied Rexroth MCR10 MCR5 Stator Replacement For Hydraulic Drive Motor Cam Ring
Model: MCR10-780
| Displacement | Inner Dia. | Inder Dia. | Outer Dia. | Thickness | Piston | Piston Dia. | Install Holes |
| 780 ml/r | 194.3 mm | 218.5 mm | 264 mm | 32 mm | 10 pcs | 32 mm | 8 pcs |
Model: MCR10-1120
| Displacement | Inner Dia. | Inder Dia. | Outer Dia. | Thickness | Piston | Piston Dia. | Install Holes |
| 1120 ml/r | 194.3 mm | 218.5 mm | 264 mm | 32 mm | 10 pcs | 38.5 mm | 8 pcs |
Model: MCR5-470
| Displacement | Inner Dia. | Inder Dia. | Outer Dia. | Thickness | Piston | Piston Dia. | Install Holes |
| 470 ml/r | 167.5 mm | 191.85 mm | 226 mm | 31.2 mm | 8 pcs | 32 mm | 12 pcs |
Model: MCR5-680
| Displacement | Inner Dia. | Inder Dia. | Outer Dia. | Thickness | Piston | Piston Dia. | Install Holes |
| 680 ml/r | 167.5 mm | 191.85 mm | 226 mm | 31.2 mm | 8 pcs | 38.5 mm | 12 pcs |
