| उत्पत्ति के प्लेस: | China |
| ब्रांड नाम: | Helm Tower |
| प्रमाणन: | ISO |
| मॉडल संख्या: | MS05 MSE05 |
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| मूल्य: | Negotiable |
| पैकेजिंग विवरण: | Export plywood case |
| प्रसव के समय: | 5-8 working days |
| भुगतान शर्तें: | T/T, L/C |
| आपूर्ति की क्षमता: | 700pcs per month |
| Performance: | 100% Replace Poclain Motor | Trademark: | Helm Tower |
|---|---|---|---|
| Speed: | High Speed | Color: | Customized |
| Condition: | New | Warranty: | 1 year |
| हाई लाइट: | Poclain Ms05 Piston Type Hydraulic Motor,High Speed Bobcat Hydraulic Motor,Bobcat Hydraulic Pump Motor |
||

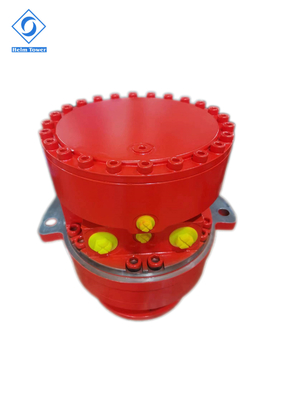

Hydraulic pistons motor poclain ms05 series medal machine for bobcat
| Type Displacement |
MS05-8 | MS05-9 | MS05-0 | MS05-1 | MS05-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 376 | 188 | 468 | 234 | 514 | 257 | 560 | 280 | ||
| Max power(kw) | 25 | 17 | 25 | 17 | 25 | 17 | 25 | 17 | ||
| Pressure discrepancy 10MPa Torque (N. m) |
562 | 275 | 699 | 343 | 768 | 376 | 837 | 410 | ||
| Rated torque(N. m) | 1405 | 1749 | 1921 | 2092 | ||||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | ||||||
| Max pressure(MPa) | 40 | 40 | 35 | 35 | ||||||
| Rated speed(r/min) | 90 | 90 | 85 | 80 | ||||||
| Speed range(r/min) | 0-200 | 0-200 | 0-190 | 0-180 | ||||||
