| MOQ: | 1 |
| standard packaging: | wooden case |
| Delivery period: | 15 days |
| payment method: | L/C, T/T |
| Supply Capacity: | 500 sets per month |

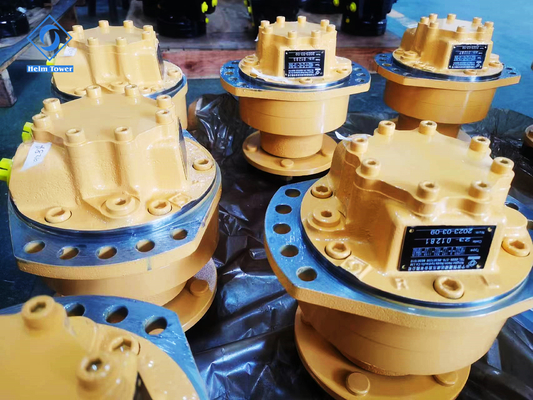

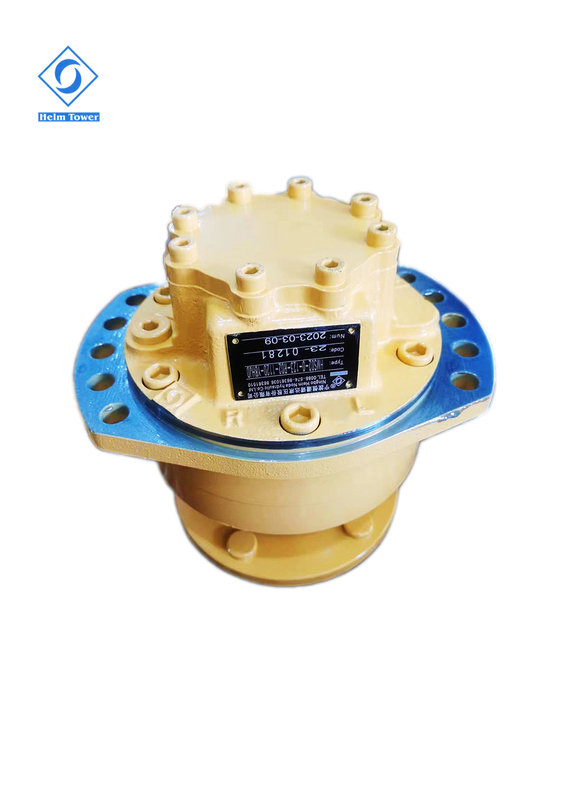

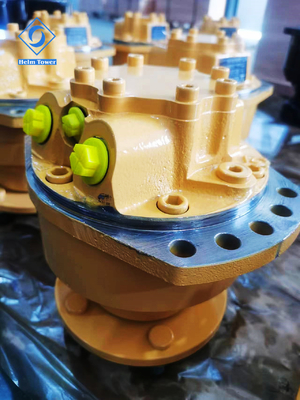

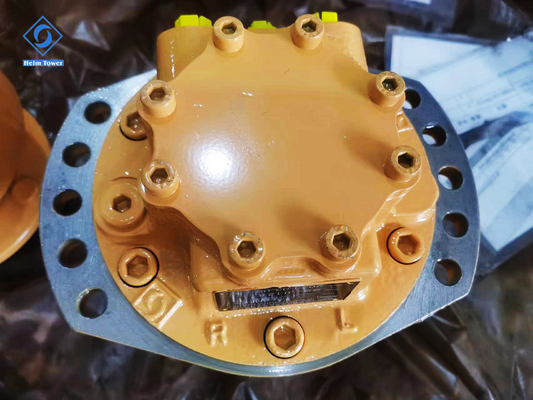

Yellow Hydraulic drive wheel motor for poclain mini ms02 for Road Sweeper
Modular design, High efficiency, High pressure and smooth running even at very low speed
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control
Application: Road Sweeper etc.
HMS MOTOR APPLIATION
|
Type Displacement |
MS02-8 | MS02-9 | MS02-0 | MS02-1 | MS02-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 172 | 86 | 213 | 106 | 235 | 118 | 255 | 128 | ||
| Max power(kw) | 16 | 10 | 16 | 10 | 16 | 10 | 16 | 10 | ||
|
Pressure discrepancy 10MPa Torque (N.m) |
273 | 136 | 340 | 170 | 351 | 175 | 405 | 202 | ||
| Rated torque(N.m) | 643 | 796 | 878 | 953 | ||||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | ||||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | ||||||
| Rated speed(r/min) | 140 | 140 | 140 | 120 | ||||||
| Speed range(r/min) | 0-310 | 0-310 | 0-310 |
0-260 |
||||||
Spare parts
Workshop View
Quality Control
वीडियो
वीडियो
वीडियो
|
|
