| उत्पत्ति के प्लेस: | निंगबो |
| ब्रांड नाम: | Helm Tower |
| प्रमाणन: | ISO9001/RoHS |
| मॉडल संख्या: | mcr03 |
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| मूल्य: | negotiable |
| पैकेजिंग विवरण: | मानक मामले |
| प्रसव के समय: | 15 दिन |
| भुगतान शर्तें: | डी/ए, डी/पी, एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | 750 |
| दबाव: | 45 एमपीए | उपयुक्त: | निर्माण मशीनरी |
|---|---|---|---|
| रफ़्तार: | उच्च गति | प्रोडक्ट का नाम: | हाइड्रोलिक मोटर |
| विशेषताएँ: | कम शोर और लंबा जीवन | शोर: | कम शोर |
| नया: | 100% नया | ||
| प्रमुखता देना: | lightweight hydraulic piston motor,hydraulic vane pump motor,compact hydraulic piston motor |
||
| Displacement (ml/rpm) | Rated Torque (N.m) |
Maximum pressure (MPa) |
Speed range (rpm) |
Rated speed (rpm) |
Maximum Torque (N.m) |
| 160 | 635 | 45 | 0-670 | 250 | 1018 |
| 225 | 892 | 45 | 0-475 | 160 | 1431 |
| 255 | 1012 | 45 | 0-420 | 160 | 1622 |
| 280 | 1112 | 45 | 0-385 | 125 | 1781 |
| 325 | 1290 | 45 | 0-330 | 160 | 2067 |
| 365 | 1450 | 45 | 0-295 | 125 | 2321 |
| 400 | 1590 | 45 | 0-270 | 125 | 2544 |

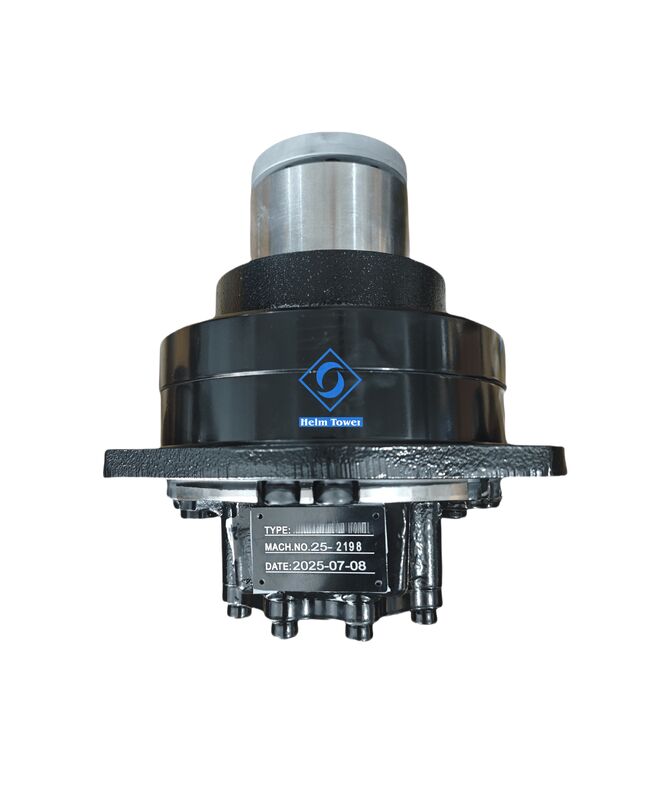

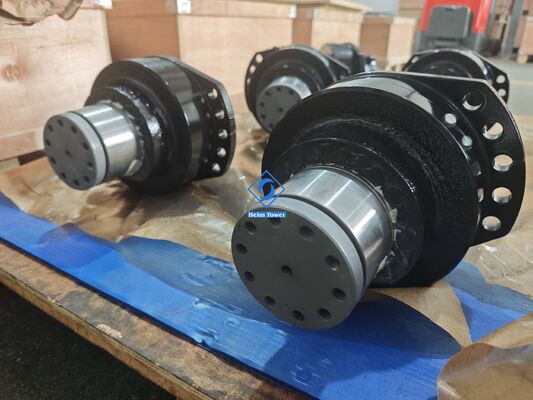

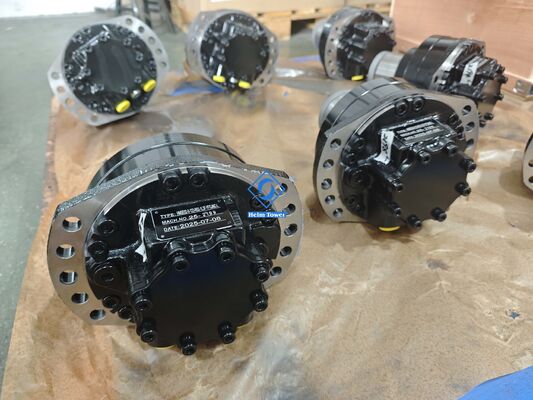

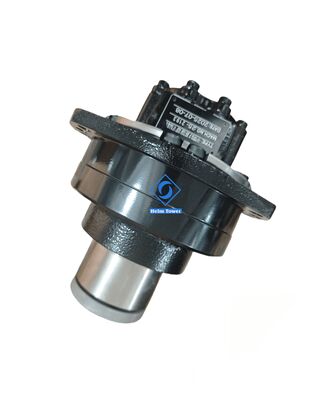

03 Hydraulic Piston Motor:
Low speed Large torque Hydraulic motor,
Radial piston type,
Adopt Imported Bearing and Oil Seal,
Modular design, High efficiency, High pressure and smooth running even at very low speeds,
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
