| उत्पत्ति के प्लेस: | Ningbo China |
| ब्रांड नाम: | Helm Tower |
| मॉडल संख्या: | Rexroth A10V |
| न्यूनतम आदेश मात्रा: | Negotiation |
|---|---|
| मूल्य: | Negotiable |
| पैकेजिंग विवरण: | Wooden Case |
| प्रसव के समय: | 3 days |
| भुगतान शर्तें: | L/C, T/T, Western Union |
| आपूर्ति की क्षमता: | 5000 pieces per month |
| प्रमाणन: | ISO9001 | Package: | Wooden Case |
|---|---|---|---|
| Warranty: | 1 Year | Product name: | Hydraulic piston pump |
| Power: | Hydraulic | Speed: | High Speed |
| Usage: | Construction Machinery | Color: | According to customer demand |
| piston pump: | Rexroth piston pump | PORT: | ningbo,shanghai,qingdao... |
| हाई लाइट: | axial piston pump,radial piston pump |
||

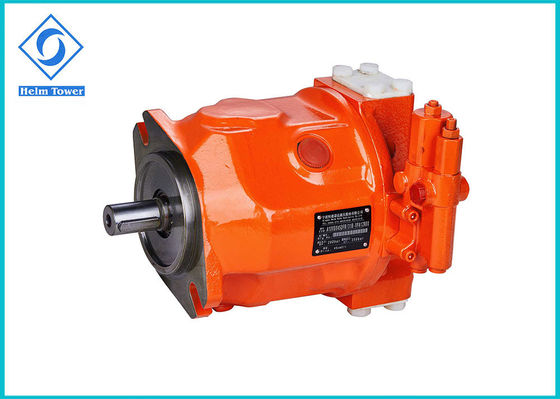

Professional Manufacturer of Rexroth Piston Pumps for A10vso Series
A10VSO16, A10VSO18, A10VSO28, A10VSO45, A10VSO71, A10VSO100, A10VSO140:
We supply high interchangeable and new manufacturing Rexroth
Specification data:
| Type | A10VSO16 | A10VSO18 | A10VSO28 | A10VSO45 | A10VSO71 | A10VSO100 | A10VSO140 | |||
| Sizes | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |||
| Displacement | Vg max | cm3 | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |
| Max speed | nmax | rpm | 3300 | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 | |
| Max. flow | In nmax | qv | L/min | 59.4 | 59.4 | 84 | 117 | 156 | 200 | 252 |
| in 1500 r/min | 27 | 27 | 42 | 68 | 107 | 150 | 210 | |||
| (¦¤p=280bar) | in nmax | Pmax | Kw | 27.7 | 27.7 | 39 | 55 | 73 | 93 | 118 |
| Max. power | in 1500 r/min | 12.6 | 12.6 | 20 | 32 | 50 | 70 | 98 | ||
| (¦¤p=280bar) | in Vg max | Tmax | Nm | 80.1 | 80.1 | 125 | 200 | 316 | 445 | 623 |
| Max. torque | ||||||||||
| Weight | m | Kg | 12 | 12 | 15 | 21 | 33 | 45 | 60 | |
