| उत्पत्ति के प्लेस: | Ningbo China |
| ब्रांड नाम: | Helm Tower |
| न्यूनतम आदेश मात्रा: | Negotiation |
|---|---|
| मूल्य: | Negotiable |
| पैकेजिंग विवरण: | Wooden Case |
| प्रसव के समय: | 3 days |
| भुगतान शर्तें: | L/C, T/T, Western Union |
| आपूर्ति की क्षमता: | 5000 pieces per month |
| प्रमाणन: | ISO9001 | मॉडल संख्या: | A10V(S)O 16/28/45/71/100/140 |
|---|---|---|---|
| Package: | Wooden Case | Warranty: | 1 Year |
| Product name: | Hydraulic piston pump | Power: | Hydraulic |
| Speed: | High Speed | Usage: | Construction Machinery |
| Color: | According to customer demand | piston pump: | Rexroth piston pump |
| MOQ: | 1 Set | port: | ningbo,shanghai,qingdao... |
| हाई लाइट: | axial piston pump,radial piston pump |
||

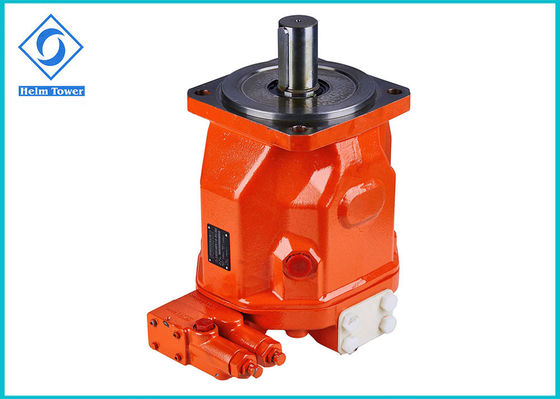

Expert supplier of China Hydraulic Piston Pump Rexroth A10V Series
Product Features:The A10VSO range of variable displacement piston pump is designed for use in open circuit hydraulic system, and comes with swash plate design. proportional to the drive speed and displacement, the flow can be smootly adjusted by regulating the swash plate position.
Following are the design and performance, advantage of this product.The product supports ISO or SAE flange mounting and also support UNC thread system.It has two drainage ports on the housing , and superior suction performance.
Specification data:
| Type | A10VSO16 | A10VSO18 | A10VSO28 | A10VSO45 | A10VSO71 | A10VSO100 | A10VSO140 | |||
| Sizes | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |||
| Displacement | Vg max | cm3 | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |
| Max speed | nmax | rpm | 3300 | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 | |
| Max. flow | In nmax | qv | L/min | 59.4 | 59.4 | 84 | 117 | 156 | 200 | 252 |
| in 1500 r/min | 27 | 27 | 42 | 68 | 107 | 150 | 210 | |||
| (¦¤p=280bar) | in nmax | Pmax | Kw | 27.7 | 27.7 | 39 | 55 | 73 | 93 | 118 |
| Max. power | in 1500 r/min | 12.6 | 12.6 | 20 | 32 | 50 | 70 | 98 | ||
| (¦¤p=280bar) | in Vg max | Tmax | Nm | 80.1 | 80.1 | 125 | 200 | 316 | 445 | 623 |
| Max. torque | ||||||||||
| Weight | m | Kg | 12 | 12 | 15 | 21 | 33 | 45 | 60 | |
FAQ:
A: Manufacturer
Q: Your payment?
A: 100% TT in advance
Q: Your minmun order quantity(MOQ)?
A: 1 set
Q: Warranty time?
A: 1 year
If you have another question, pls feel free to contact us as below:
व्यक्ति से संपर्क करें: Mr. Helm Tower
दूरभाष: 13567431300
फैक्स: 86-574-86369630
