| उत्पत्ति के प्लेस: | Ningbo China |
| ब्रांड नाम: | Helm Tower |
| न्यूनतम आदेश मात्रा: | Negotiation |
|---|---|
| मूल्य: | Negotiable |
| पैकेजिंग विवरण: | Wooden Case |
| प्रसव के समय: | 3 days |
| भुगतान शर्तें: | L/C, T/T, Western Union |
| आपूर्ति की क्षमता: | 5000 pieces per month |
| प्रमाणन: | ISO9001 | मॉडल संख्या: | A10V(S)O 16/28/45/71/100/140 |
|---|---|---|---|
| Package: | Wooden Case | Warranty: | 1 Year |
| Product name: | Hydraulic piston pump | Power: | Hydraulic |
| Speed: | High Speed | Usage: | Construction Machinery |
| Color: | According to customer demand | piston pump: | Rexroth piston pump |
| MOQ: | 1 Set | port: | ningbo,shanghai,qingdao... |
| हाई लाइट: | axial piston pump,radial piston pump |
||

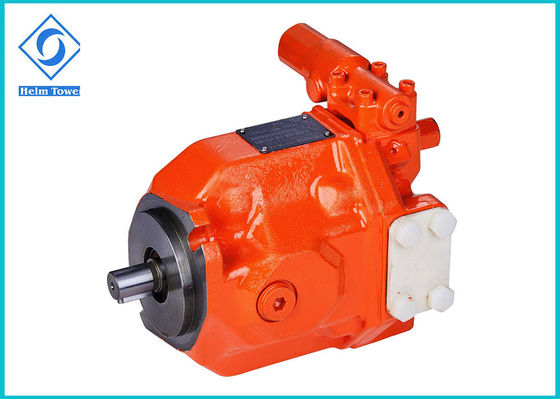

Rexroth A10V uchida A10V18 Variable displacement Hydraulic Piston Pump
Axial piston pumps model A10V are swash plate design variable displacement pumps.
This piston pump smoothly and continuously varies its displacement,by altering the angle of its swash plate. As your system operates, valves monitor the loads on the actuators and control the swash plate accordingly.
| Model | A10VSO71DR/31R-PPA12N00 |
| Specification | 10,18,28,45,71,100,140 |
| Control | DR,DFR,DRG,DFLR,FE,FED,DFE1,ED71,ED72 |
| application | Oil |
| Displacement | 5,10,12,23,28,55 |
| Nominal pressure | 280 bar |
| Maximum pressure | 350 bar |
Specification data:
| Type | A10VSO16 | A10VSO18 | A10VSO28 | A10VSO45 | A10VSO71 | A10VSO100 | A10VSO140 | |||
| Sizes | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |||
| Displacement | Vg max | cm3 | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |
| Max speed | nmax | rpm | 3300 | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 | |
| Max. flow | In nmax | qv | L/min | 59.4 | 59.4 | 84 | 117 | 156 | 200 | 252 |
| in 1500 r/min | 27 | 27 | 42 | 68 | 107 | 150 | 210 | |||
| (¦¤p=280bar) | in nmax | Pmax | Kw | 27.7 | 27.7 | 39 | 55 | 73 | 93 | 118 |
| Max. power | in 1500 r/min | 12.6 | 12.6 | 20 | 32 | 50 | 70 | 98 | ||
| (¦¤p=280bar) | in Vg max | Tmax | Nm | 80.1 | 80.1 | 125 | 200 | 316 | 445 | 623 |
| Max. torque | ||||||||||
| Weight | m | Kg | 12 | 12 | 15 | 21 | 33 | 45 | 60 | |
FAQ:
A: Manufacturer
Q: Your payment?
A: 100% TT in advance
Q: Your minmun order quantity(MOQ)?
A: 1 set
Q: Warranty time?
A: 1 year
If you have another question, pls feel free to contact us as below:
व्यक्ति से संपर्क करें: Mr. Helm Tower
दूरभाष: 13567431300
फैक्स: 86-574-86369630
