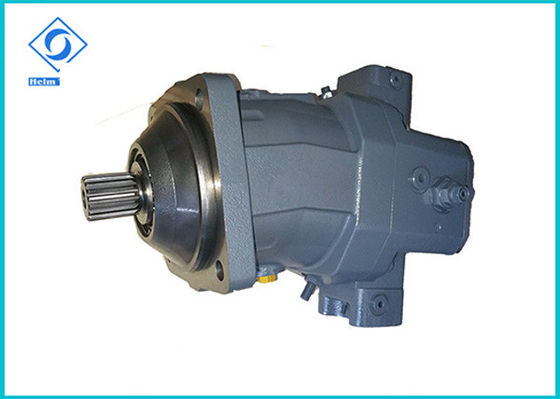

Large Control Range Hydraulic Wheel Motor Static Pressure Balance Structure

Large Control Range Hydraulic Wheel Motor Static Pressure Balance Structure

  • Large Control Range Hydraulic Wheel Motor Static Pressure Balance Structure
  • Large Control Range Hydraulic Wheel Motor Static Pressure Balance Structure
  • Large Control Range Hydraulic Wheel Motor Static Pressure Balance Structure
  • Large Control Range Hydraulic Wheel Motor Static Pressure Balance Structure
  • Large Control Range Hydraulic Wheel Motor Static Pressure Balance Structure
Large Control Range Hydraulic Wheel Motor Static Pressure Balance Structure
उत्पाद विवरण:
Place of Origin: Ningbo China
ब्रांड नाम: Helm Tower
प्रमाणन: ISO9001
Model Number: Rexroth A6V
भुगतान & नौवहन नियमों:
Minimum Order Quantity: Negotiation
मूल्य: Negotiable
Packaging Details: Wooden Case
Delivery Time: 3 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pieces per month
संपर्क करें
विस्तृत उत्पाद विवरण
Package: Wooden Case प्रमाणन: ISO9001
Warranty: 1 Year Product name: Hydraulic piston motor
Power: Hydraulic Speed: High Speed
Usage: Construction Machinery Color: According to customer demand
हाई लाइट:

axial piston hydraulic motor

,

industrial hydraulic motor

Large Control Range Hydraulic Wheel Motor Static Pressure Balance Structure





A6VM Series Rexroth Hydraulic Variable Motor And Part A6VM80 For Construction Machinery



Features:



Rexroth A6V hydraulic piston motor

Large control range with hydrostatic transmission
Cost-saving due to the possibility of using smaller pumps
High efficient



With hydraulic transmission, this range of variable displacement motor has wide displacement motor has wide displacement control range . It supports secondary control regulation with various control devices. It offers increased maximum output speed under reduced swivel angle conditions.

Due to the elimincetion of gear shifts, and the possibility of using smaller pumps, the product is cost saving. Meanwhile , it offers high power density, high efficiency, good starting performance, and low moment of interia. The variable displacement motor additionally has high axial loading capacity.





Displacement Diagram



  28 55 80 107 160 225 250 468
Displacement Vgmax ml/r 28.1 54.8 80 107 160 225 250 468
Vgmin ml/r 8.1 15.8 23 30.8 46 64.8 0 135
Max.Permissible.Swept volome Qgmax L/min 133 206 268 321 424 530 590 889
Max.speed(at Qmax) nmax at Vgmax r/min 4750 3750 3350 3000 2650 2360 2360 1900
nmax at Vg<Vgmax r/min 6250 5000 4500 4000 3500 3100 3100 2500
Torque constants Max at Vgmax Nm/MPa 4.463 8.701 12.75 16.97 25.41 35.71 39.79 74.41
Max at Vgmin Nm/MPa 1.285 2.511 3.73 4.9 7.35 10.3 11.46 21.47
Max.torque(p=35Mpa) Mmax at Vgmax Nm 156 304 446 594 889 1250 1391 2604
Mmax at Vgmin Nm 45 8 130 171 257 360 401 751
Max.output power(at 35Mpa and Qmax KW 78 120 156 187 247 309 335 519
Moment Kgm2 0.0017 0.0052 0.0109 0.0167 0.0322 0.0532 0.0532 0.025
Weight kg 18 27 39 52 74 103 103 223

Large Control Range Hydraulic Wheel Motor Static Pressure Balance Structure 0

Large Control Range Hydraulic Wheel Motor Static Pressure Balance Structure 1

Large Control Range Hydraulic Wheel Motor Static Pressure Balance Structure 2



Applications:


Our motors are mainly used for construction machinery, geological drilling equipment, special vehicles,mining machinery, lifting and transporting equipment, cranes, ship machinery, agricultural and forestry machinery, and so on.
