| उत्पत्ति के प्लेस: | CHINA |
| ब्रांड नाम: | Helm Tower Hydraulic |
| प्रमाणन: | ISO9001 |
| मॉडल संख्या: | MCR03 |
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| पैकेजिंग विवरण: | wooden case |
| प्रसव के समय: | 10days |
| भुगतान शर्तें: | L/C |
| आपूर्ति की क्षमता: | 450 sets per month |
| Type: | Rexroth hydraulic motor | Warranty: | 1 year |
|---|---|---|---|
| Color: | Follow customer's requirement | Certificate: | ISO9001:2008 |
| Material: | Steel | Feature: | Low speed high torque |
| Package: | Wooden case | ||
| हाई लाइट: | radial piston hydraulic motor,axial piston hydraulic motor |
||

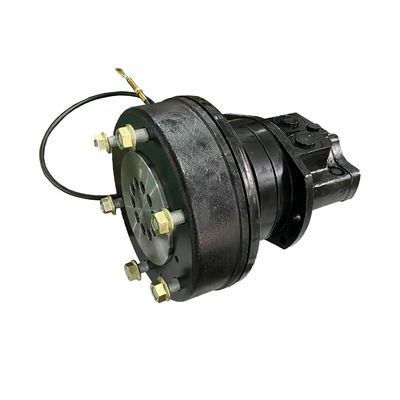

MCR3 MCR03 Rexroth Final Drive Motor Hydraulic Radial Piston Motor
| Code | MCR03 | |||
| Displacement Group | 7 | 0 | 1 | 2 |
| Displacement(ml/r) | 160 | 225 | 255 | 280 |
| Theoretical torque at 10 MPa(N.m) | 254 | 357 | 405 | 445 |
| Rated speed(r/min) | 250 | 160 | 160 | 125 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 |
| Rated torque(N.m) | 530 | 740 | 830 | 920 |
| Max pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 |
| Max torque(N.m) | 650 | 910 | 1030 | 1130 |
| Speed range(r/min) | 0-670 | 0-475 | 0-420 | 0-385 |
| Max power(kW) | 18 | |||
