| उत्पत्ति के प्लेस: | CHINA |
| ब्रांड नाम: | Helm Tower Hydraulic |
| प्रमाणन: | ISO9001 |
| मॉडल संख्या: | MCR05 |
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| पैकेजिंग विवरण: | wooden case |
| प्रसव के समय: | 10days |
| भुगतान शर्तें: | L/C |
| आपूर्ति की क्षमता: | 450 sets per month |
| Warranty: | 1 year | Color: | Follow customer's requirement |
|---|---|---|---|
| Application: | Machinery | Pressure: | High Pressure |
| Delivery time: | 5-7 days | Package: | Wooden case |
| हाई लाइट: | radial piston hydraulic motor,axial piston hydraulic motor |
||

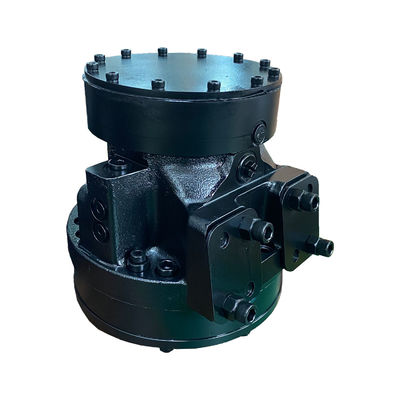

Rexroth MCR5 hydraulic motor Bobcat S300 Final Drive Motor for skid steer loader
Product Features:
BOBCAT S300 Final Drive Motor
Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Rexroth same series motor perfect replacement,
Designed in control modules,combine freely,
High efficiency,High pressure, low noise,
Radial piston,Low speed,High torque.
This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
Designed in control modules, combine freely
High efficiency, High pressure, low speed motors
| Type | MCR05-380 | MCR05-470 | MCR05-520 | MCR05-565 | MCR05-680 | MCR05-750 |
| Displacement(ml/r) | 380 | 470 | 520 | 565 | 680 | 750 |
| Continuous output power(kw) | 29 | 29 | 29 | 29 | 35 | 35 |
| Differential pressure 10Mpa torque(Nm) | 604 | 748 | 827 | 899 | 1082 | 1194 |
| Rated torque(Nm) | 1419 | 1756 | 1942 | 2111 | 2540 | 2802 |
| Pressure rating(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 |
| Max. pressure(Mpa) | 40 | 40 | 40 | 40 | 40 | 40 |
| Max. speed(rpm) | 220 | 220 | 220 | 220 | 220 | 170 |
व्यक्ति से संपर्क करें: Mr. Helm Tower
दूरभाष: 13567431300
फैक्स: 86-574-86369630
