| उत्पत्ति के प्लेस: | CHINA |
| ब्रांड नाम: | Helm Tower Hydraulic |
| प्रमाणन: | ISO9001 |
| मॉडल संख्या: | MCR05 |
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| मूल्य: | 500usd |
| पैकेजिंग विवरण: | wooden case |
| प्रसव के समय: | 10days |
| भुगतान शर्तें: | L/C |
| आपूर्ति की क्षमता: | 450 sets per month |
| Warranty: | 1 year | Color: | Follow customer's requirement |
|---|---|---|---|
| Application: | Machinery | Pressure: | High Pressure |
| Delivery time: | 5-7 days | Package: | Wooden case |
| हाई लाइट: | Machinery Radial Piston Motor,Hydraulic Radial Piston Motor |
||

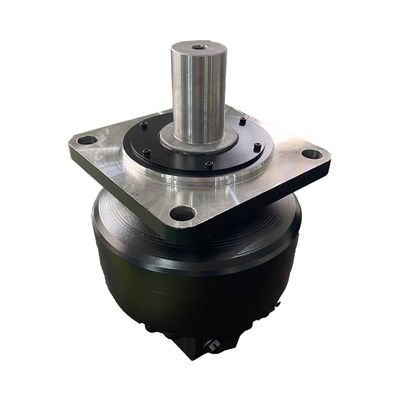

Double Speed Hydraulic Radial Piston Motor Rexroth MCR05
MCR03/MCR05/MCR10 MCRE03/MCRE05/MCRE10 Low Speed High Torque Single/Double Speed Wheel/Shaft Piston Motor,
Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Rexroth same series motor perfect replacement,
Designed in control modules,combine freely,
High efficiency,High pressure, low noise,
Radial piston,Low speed,High torque.
Designed in control modules, combine freely
High efficiency, High pressure, low speed motors
| Type | MCR05-380 | MCR05-470 | MCR05-520 | MCR05-565 | MCR05-680 | MCR05-750 |
| Displacement(ml/r) | 380 | 470 | 520 | 565 | 680 | 750 |
| Continuous output power(kw) | 29 | 29 | 29 | 29 | 35 | 35 |
| Differential pressure 10Mpa torque(Nm) | 604 | 748 | 827 | 899 | 1082 | 1194 |
| Rated torque(Nm) | 1419 | 1756 | 1942 | 2111 | 2540 | 2802 |
| Pressure rating(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 |
| Max. pressure(Mpa) | 40 | 40 | 40 | 40 | 40 | 40 |
| Max. speed(rpm) | 220 | 220 | 220 | 220 | 220 | 170 |
Application
Construction Machinery( skid steer loader,down-the-hole drill,rotary drill,mini and midi excavator,mixer truck, cutting machine),
Mining Machinery(road header, scraper, heavy duty handing car, coal mine drill),
Marine Machinery(gantry crane),
