| Place of Origin: | CHINA |
| ब्रांड नाम: | Helm Tower Hydraulic |
| प्रमाणन: | ISO9001 |
| Model Number: | MCR5 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 450 sets per month |
| Warranty: | 1 year | Color: | Follow customer's requirement |
|---|---|---|---|
| Application: | Machinery | Pressure: | High Pressure |
| Delivery time: | 30 days | Package: | Wooden case |
| After Warranty: | Online support | Material: | Steel |
| Structure: | Radial Piston Motor | HS Code: | 8412291000 |
| प्रमुखता देना: | MCR05 hydraulic piston motor,MCRE05 hydraulic piston motor,Rexroth hydraulic piston motor |
||

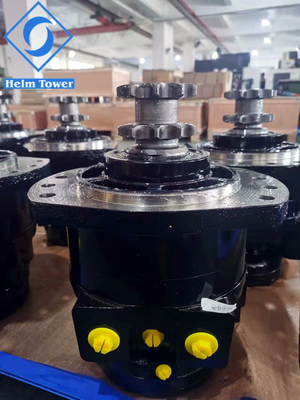

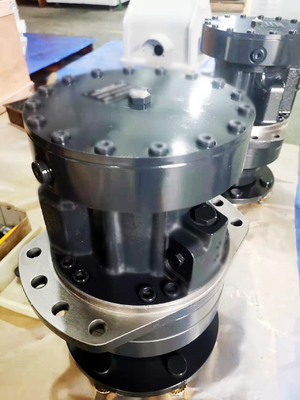

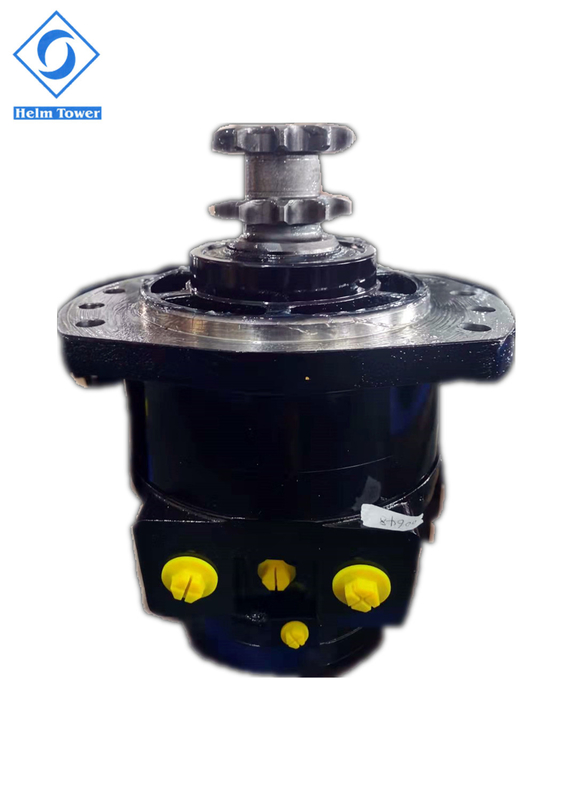

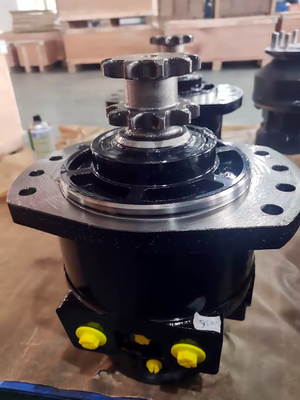

Low speed high torque hydraulic motor Radial Piston Motor Rexroth Black MCR05 MCRE05 For Machinery
Product Features:
MCR05 Hydraulic Wheel Motor:
1) Incurve radial piston type.
2) Designed in control modules, combine freely.
3) High efficiency, High pressure, low noise.
4) Radial piston, Low speed, High torque.
HMCR MOTOR APPLICATIONS
Mining Machinery: Coal Winning Machine, Road Header, Heavy Duty Handling Car, Coal Mine Drill.
Engineering Machinery: Skid Steer Loader, Break Machine.
Technical specification
| Type | MCR05-380 | MCR05-470 | MCR05-520 | MCR05-565 | MCR05-680 | MCR05-750 |
| Displacement(ml/r) | 380 | 470 | 520 | 565 | 680 | 750 |
| Continuous output power(kw) | 29 | 29 | 29 | 29 | 35 | 35 |
| Differential pressure 10Mpa torque(Nm) | 604 | 748 | 827 | 899 | 1082 | 1194 |
| Rated torque(Nm) | 1419 | 1756 | 1942 | 2111 | 2540 | 2802 |
| Pressure rating(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 |
| Max. pressure(Mpa) | 40 | 40 | 40 | 40 | 40 | 40 |
| Max. speed(rpm) | 220 | 220 | 220 | 220 | 220 | 170 |
