| उत्पत्ति के प्लेस: | Ningbo |
| ब्रांड नाम: | Helm Tower |
| प्रमाणन: | ISO 9001 |
| मॉडल संख्या: | MS18 |
| न्यूनतम आदेश मात्रा: | Negotiation |
|---|---|
| मूल्य: | Negotiable |
| पैकेजिंग विवरण: | Standard Export Wooden Case |
| प्रसव के समय: | 7-15 working days |
| भुगतान शर्तें: | L/C, T/T |
| आपूर्ति की क्षमता: | 1000 units per month |
| Type: | piston motor | Color: | customized |
|---|---|---|---|
| Speed: | 0-100r/min | Torque: | 8343-8500 N.m |
| Rated pressure: | 25 MPa | Max. pressure: | 31.5 MPa |
| हाई लाइट: | MS18-2-111-F12-2A50,100r/min Radial Piston Hydraulic Motor,Poclain MS Radial Piston Hydraulic Motor |
||

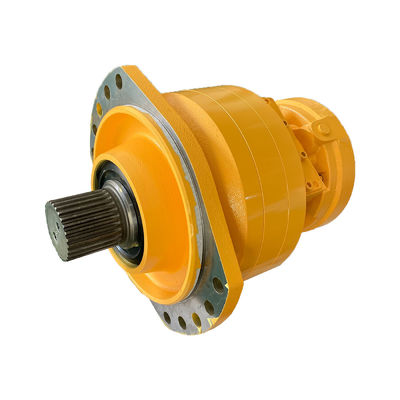

MS Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
| Type | MS18-8 | MS18-9 | MS18-0 | MS18-1 | MS18-2 | |||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 1395 | 697 | 1571 | 785 | 1747 | 873 | 1911 | 955 | 2099 | 1049 | |
| Max power(kw) | 62 | 42 | 62 | 42 | 62 | 42 | 62 | 42 | 62 | 42 |
|
Pressure discrepancy 10MPa Torque (N. m) |
2085 | 1022 | 2348 | 1151 | 2611 | 1279 | 2856 | 1400 | 3137 | 1537 |
| Rated torque(N. m) | 5212 | 5870 | 6528 | 7140 | 7843 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 55 | 55 | 55 | 55 | 50 | |||||
| Speed range(r/min) | 0-150 | 0-150 | 0-150 | 0-135 | 0-125 | |||||
Applications:
Construction: road building and maintenance, earth moving, finishing, drilling, trenching, recycling, mining and boring machines.
Agriculture: combine and others specialty harvesters, sprayers, forestry equipment,
Handling: forklift trucks, aerial work platforms, conveyors, aircraft loading equipment,
Industry: process, paper, foundry, food.
Marines: fishing, harbor,
Transportation: material, heavy duty, on-highway.
Package
Our advantages:
1).High performance:our motor performance is very close to Poclain original motors, even sometimes be superior to original motor.
2).100% interchangeable:both complete motor and spare parts, our products could completely replace to Poclain original motors.
3).Reasonable price:our price system has been settled much lower than Poclain original motors.
4).Fast delivery time:most of the spare parts we have inventory, the delivery time keeps within 10 days for regular motor.
5).Excellent aftersales service:we have 12 months' quality warranty, and within warranty time ,all repairment are free of charge.
व्यक्ति से संपर्क करें: Mr. Helm Tower
दूरभाष: 13567431300
फैक्स: 86-574-86369630
