| उत्पत्ति के प्लेस: | CHINA |
| ब्रांड नाम: | Helm Tower Hydraulic |
| प्रमाणन: | ISO9001 |
| मॉडल संख्या: | MCR10 |
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| मूल्य: | 500usd |
| पैकेजिंग विवरण: | wooden case |
| प्रसव के समय: | 10days |
| भुगतान शर्तें: | L/C |
| आपूर्ति की क्षमता: | 450 sets per month |
| Warranty: | 1 year | Color: | Follow customer's requirement |
|---|---|---|---|
| Pressure: | High Pressure | Delivery time: | 5-7 days |
| Package: | Wooden case | Application: | construction machinery, drill machinery |
| Material: | Cast Iron | Rated pressure: | 25 Mpa |
| Max pressure: | 31.5 Mpa | Usage: | low speed high torque motor |
| हाई लाइट: | mcr10 radial piston hydraulic motor,rexroth radial piston hydraulic motor,mcr10 rexroth radial piston motor |
||

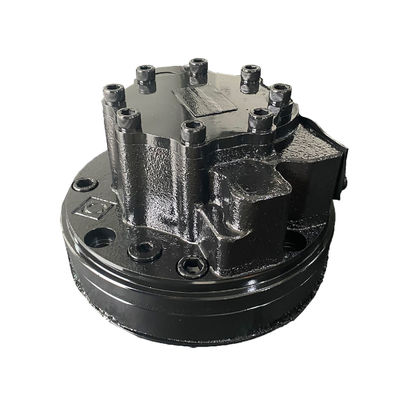

Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Rexroth same series motor perfect replacement,
Designed in control modules,combine freely,
High efficiency,High pressure, low noise,
Radial piston,Low speed,High torque.
| Code | HMCR10 | HMCRE10 | ||||
| Displacement Group | 0 | 1 | 2 | 0 | 1 | 2 |
| Displacement(ml/r) | 780 | 860 | 940 | 1120 | 1250 | 1340 |
| Theoretical torque at 10Mpa(N.m) | 1240 | 1367 | 1494 | 1780 | 1987 | 2130 |
| Rated speed(r/min) | 125 | 100 | 100 | 100 | 80 | 80 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 |
| Rated torque(N.M) | 2560 | 2820 | 3090 | 3680 | 4110 | 4400 |
| Max.pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max.torque(N.m) | 3160 | 3480 | 3810 | 4540 | 5060 | 5430 |
| Speed range(r/min) | 0-215 | 0-195 | 0-180 | 0-150 | 0-135 | 0-125 |
| Max.power(kW) | 44 | 44 | 44 | 50 | 50 |
50 |
MCR10 Application:
Mining Machinery: Coal Winning Machine,Road Header,Heavy Duty Handling Car, Coal Mine Drill
Engineering Machinery:Skid Steer Loader,Break Machine
