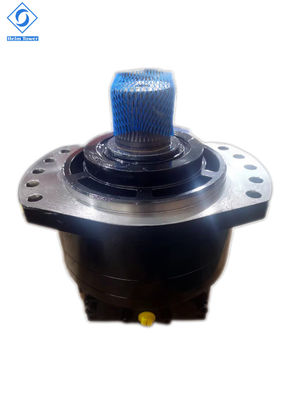

Hydraulic Piston Motor MCR10 With 25 Mpa pressure For Mining Machinery
Product Description
Modular Design.
High Pressure and smooth running even at very low speeds.
1). Radial piston type;
2). Adopt Imported Bearing and Oil Seal, etc.
3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
5). Motor with multi-disc brake.
6). Motor emission control.
Applications
Construction Machinery: Beam Carrier/Hoisting Machine, Cement Concrete Mixing Station, Cinder,Belt Conveyor.
Farming Machinery:Spray Machine.
Mining Machinery:Mini Road Header, Scraper,Heavy Duty Handling Car,Coal Mine Drill.
Marine Machinery: Marine Deck Crane.
Technical specifications
MCR10
| Displacement Group | 0 | 1 | 2 |
| Displacement (ml/r) | 780 | 860 | 940 |
| Theoretical Torque at 10Mpa (N.m) | 1240 | 1367 | 1494 |
| Rated Speed (r/min) | 125 | 125 | 100 |
| Rated Pressure (Mpa) | 25 | 25 | 25 |
| Rated Torque (N.m) | 2564 | 2827 | 3090 |
| Max. Pressure (Mpa) | 31.5 | 31.5 | 31.5 |
| Max. Torque (N.m) | 3162 | 3486 | 3811 |
| Speed Range (r/min) | 0-200 | 0-160 | 0-160 |
| Max. Power (kw) | 44kW | 44kW | 44kW |
|
|
